Fixation Tools

Fixation Tools for Glass or any other material with a non-porous surface. The Fixation Tools with adjustable angle fixed in different angular positions.

!

Suction holder for Glass

Suction holder 63311

Universal suction holder for Glass.

Universal suction holder for quickly affixing all kinds of objects such as measuring devices, displays, etc., suitable for all materials with smooth, flat, airtight surfaces such as glass, plastic, metal, coated wood.

Suction Holder for Glass

Suction Holder 6331

Angle Suction Holder 90°

Angle Suction Holder 90° with two suction units ø 55 mm, for the fixation of small glass parts. suitable for all materials with smooth, flat, airtight surfaces such as glass, plastic, metal.

Suction Holder for Glass

Suction Holder 6302

Angle Suction Holder 90°

Angle Suction Holder 90°, Bracket Length 200 mm and 120 mm. Holding and positioning device made of 2 suction discs (ø 120 mm)

Suction Holder for Glass

Suction Holder 6311

Suction Holder adjustable from 45° to 300°

Angle Suction Holder, adjustable from 45° to 300°, Positioning aid with two suction pads (Ø 120 mm) and special sealing lip, suction pads adjustable +/- 12 mm, can be fine adjusted to each other, sturdy plastic arms are 194 mm long and are connected to each other by a joint.

Suction Holder for Glass

Suction Holder 6312

Suction Holder adjustable from 45° to 300°

Angle Suction Holder, adjustable from 45° to 300° Very robust model with twin suction units and 4 suction pads (ø 120 mm)

Suction holder for Glass

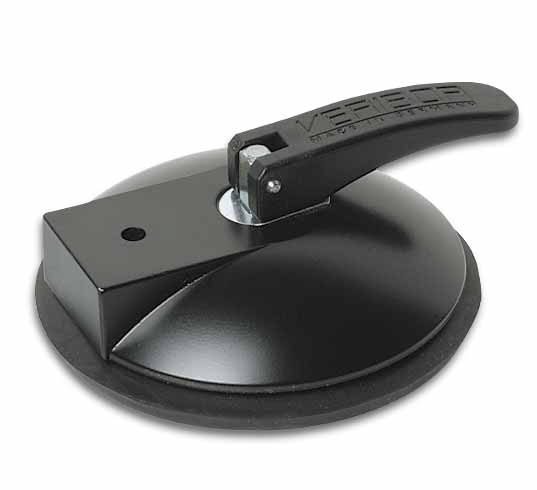

Suction holder 600

Universal suction holder.

Universal suction holder for attaching mounting aids and templates, suitable for all materials with smooth, flat, airtight surfaces such as glass, plastic, metal, coated wood, marble, etc.

Suction Holder for Glass

Suction Holder 60021

Suction Holder ø 40 mm.

Suction Holder ø 40 mm, height 70 mm, for all materials with smooth, airtight surfaces such as glass, plastic, metal, coated wood, marble, etc.

Suction Stopper for Glass

Suction Stopper 6370

Eccentric Suction Stopper.

Eccentric Suction Stopper, an eccentrically rotating buffer stop is mounted at right angles to a suction holder, allowing precise positioning of glass.

Fixation Device for Glass

Fixation Device 6700

Fixation Device for multi-layered bonds.

Fixation Device for multi-layered bonds the adjustable holder is fastened by means of a suction pad to the corners of the glass panes.

Magnetic Cube for Glass

Magnetic Cube 6340

Magnetic Cube 50 x 45 x 45 mm.

Magnetic Cube 50 x 45 x 45 mm, heavy-duty magnet, accurate right angles, two lateral hollows allow the cube to be held comfortably, all edges and corners are bevelled.
