Speak-Thrus
Speak-Thrus for simple, double and bullet resistant glass in different surfaces and sizes.

Heavy Stainless Steel Speak-Thru
N666
!



          • Speak-Thru is designed for use with bullet resistant glass.

          • The Round Heavy Stainless Steel Level 3 Bullet Resistant Speak-Thru is designed for use with bullet resistant glass, acrylic or polycarbonate. Made of heavy stainless steel, the concentric circular louvers are spaced to deflect projectiles entering the cavity between the interior and exterior surfaces without interfering with conversation. Accommodates glazing thicknesses from 1-3/16 to 1-7/8 inch (30 to 48 millimeter). Optional spacer rings are available for use with glazing materials less than 1-3/16 inch (30 millimeter) thick. This unit has a protection rating of Level 3 (.44 Magnum)

Speak-Thrus made of brass
549
!



          • Speak-Thrus are designed to allow audible transmission of voice requests at ticket windows.

          • No-Draft Speak-Thrus are designed to allow audible transmission of voice requests at ticket windows, box offices and more. They prevent tampering from the outside, and stop drafts to the interior. The 549 Series is made of brass. Each unit is individually boxed with gaskets and mounting screws for installation on glass up to 1/4 inch (6.4 millimeter) thick. The Speak-Thrus require a minimum hole diameter of 2-1/4 inch (57 millimeters), and will cover holes up to 4-1/4 inch (108 millimeters). Recommended hole diameter is 3-1/2 inches (89 millimeters)

Speak-Thrus for 6 mm Glass
405
!



          • Speak-Thrus for 6 mm Glass.

          • Covered Speak-Thrus are available with two styles of covers: all metal, or metal outer ring with lucite vision port. Both styles are screened to provide an insect free environment. These heavy duty units are available in satin anodized or duranodic bronze finishes. Both 4 and 6 inch (102 and 152 millimeter) sizes are made to be glazed in 1/4 inch (6 millimeter) glass. The four inch (102 millimeter) model requires a 3-1/2 inch (89 millimeter) diameter hole. The six inch (152 millimeter) model requires a 5-1/2 inch (140 millimeter) diameter hole.

Speak-Thrus for 6 mm Glass
410
!



          • Speak-Thrus for 6 mm Glass.

          • Covered Speak-Thrus are available with two styles of covers: all metal, or metal outer ring with lucite vision port. Both styles are screened to provide an insect free environment. These heavy duty units are available in satin anodized or duranodic bronze finishes. Both 4 and 6 inch (102 and 152 millimeter) sizes are made to be glazed in 1/4 inch (6 millimeter) glass. The four inch (102 millimeter) model requires a 3-1/2 inch (89 millimeter) diameter hole. The six inch (152 millimeter) model requires a 5-1/2 inch (140 millimeter) diameter hole.

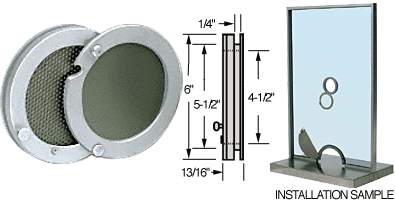

Speak-Thrus for 6 mm Glass
425
!



          • Speak-Thrus for 6 mm Glass.

          • Covered Speak-Thrus are available with two styles of covers: all metal, or metal outer ring with lucite vision port. Both styles are screened to provide an insect free environment. These heavy duty units are available in satin anodized or duranodic bronze finishes. Both 4 and 6 inch (102 and 152 millimeter) sizes are made to be glazed in 1/4 inch (6 millimeter) glass. The four inch (102 millimeter) model requires a 3-1/2 inch (89 millimeter) diameter hole. The six inch (152 millimeter) model requires a 5-1/2 inch (140 millimeter) diameter hole.

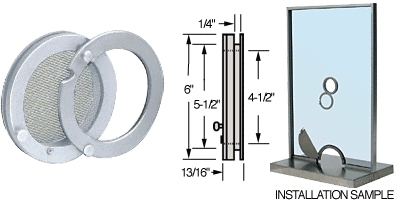

Speak-Thrus for 6 mm Glass
430
!



          • Speak-Thrus for 6 mm Glass.

          • The Covered Speak-Thrus are available with two styles of covers: all metal, or metal outer ring with lucite vision port. Both styles are screened to provide an insect free environment. These heavy duty units are available in satin anodized or duranodic bronze finishes. Both 4 and 6 inch (102 and 152 millimeter) sizes are made to be glazed in 1/4 inch (6 millimeter) glass. The four inch (102 millimeter) model requires a 3-1/2 inch (89 millimeter) diameter hole. The six inch (152 millimeter) model requires a 5-1/2 inch (140 millimeter) diameter hole.

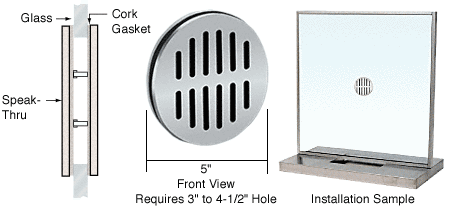

Speak-Thrus up to 32 mm Glass
SST5
!



          • Speak-Thrus up to 32 mm Glass.

          • This Stainless Steel Speak-Thru provides natural voice transmission. Offset slots in front and rear prevent tampering from the outside, and stops drafts to the interior. Speak-Thru has a brushed stainless finish, and comes in two sizes. Screws are included that will this item to accommodate glazing thicknesses of up to 1-1/4 inches (32 millimeters) thick.

Speak-Thrus up to 32 mm Glass
SST7
!



          • Speak-Thrus up to 32 mm Glass.

          • This Stainless Steel Speak-Thru provides natural voice transmission. Offset slots in front and rear prevent tampering from the outside, and stops drafts to the interior. Speak-Thru has a brushed stainless finish, and comes in two sizes. Screws are included that will this item to accommodate glazing thicknesses of up to 1-1/4 inches (32 millimeters) thick.

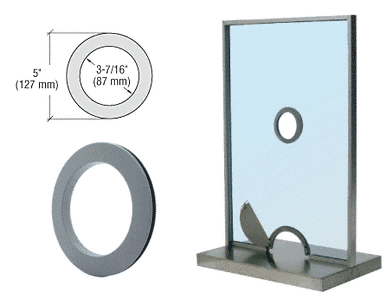

Speak-Thrus up to 6 mm Glass
543
!



          • Speak-Thrus up to 6 mm Glass.

          • This Plastic Speak-Thru Hole Frame is an easy to snap together unit for inside installations. It conceals roughly ground or chipped hole edges and creates an attractive appearance. It fits 4 inch (102 millimeter) diameter holes and is adjustable for 3/16 inch to 1/4 inch (5 to 6 millimeter) thick glass. Leaves an inside diameter hole of 3-7/16 inches (87 millimeters)

Speak-Thrus up to 6 mm Glass
543BRZ
!



          • Speak-Thrus up to 6 mm Glass.

          • This Bronze Plastic Speak-Thru Hole Frame is an easy to snap together unit for inside installations. It conceals roughly ground or chipped hole edges and creates an attractive appearance. It fits 4 inch (102 millimeter) diameter holes and is adjustable for 3/16 inch to 1/4 inch (5 to 6 millimeter) thick glass. Leaves an inside diameter hole of 3-7/16 inches (87 millimeters)

Speak-Thrus up to 6 mm Glass
521120
!



          • Speak-Thrus up to 6 mm Glass.

          • Speak-Thrus, door made of transparent plastic material, with lock-up speak rosette, for glass thickness 4 - 6 mm, outer dimensions: approx. 170 x 300 mm, glass cut-out: approx. 150 x 275 mm, radius: 75 mm, opening size: approx. 120 x 245 mm.

Speak-Thrus up to 24 mm Glass
83080
!



          • Speak-Thrus up to 24 mm Glass.

          • Speak-Thrus for glass thickness 12 - 24 mm, outer dimensions: approx. 202 x 352 mm, opening size: approx. 150 x 300 mm, glass cut-out: approx. 180 x 330 mm, please indicate glass thickness when ordering.

Speak-Thrus up to 10 mm Glass
83075
!



          • Speak-Thrus up to 10 mm Glass.

          • Speak-Thrus up to 10 mm glass thickness, outer dimensions: approx. 202 x 352 mm, opening size: approx. 150 x 300 mm, glass cut-out: approx. 180 x 330 mm.

Speak-Thrus up to 10 mm Glass
83050
!



          • Speak-Thrus up to 10 mm Glass.

          • Speak-Thrus for glass up to 10 mm thick, outer dimensions: approx. ø 195 mm, opening size: approx. ø 134 mm, drill hole: approx. ø 170 mm.

Speak-Thrus up to 24 mm Glass
83055
!



          • Speak-Thrus up to 24 mm Glass.

          • Speak-Thrus for glass 12 - 24 mm thick, outer dimensions: approx. ø 195 mm · opening size: approx. ø 134 mm · drill hole: approx. ø 170 mm.
          • Please indicate glass thickness when ordering.

Utility Door up to 24 mm Glass
83101
!



          • Utility Door up to 24 mm Glass.

          • Utility Door for glass 12 - 24 mm, with casement fastener, outer dimensions 292 x 196 mm, glass cut-out 268 x 184 mm, opening size 240 x 170 mm.
          • Please indicate glass thickness when ordering.

Utility Door up to 10 mm Glass
83100
!



          • Utility Door up to 10 mm Glass.

          • Utility Door up to 10 mm glass thickness, with door wing prepared for glass panes up to 10 mm, with casement fastener, outer dimensions 292 x 196 mm, glass cut-out 268 x 184 mm, opening size 240 x 170 mm.

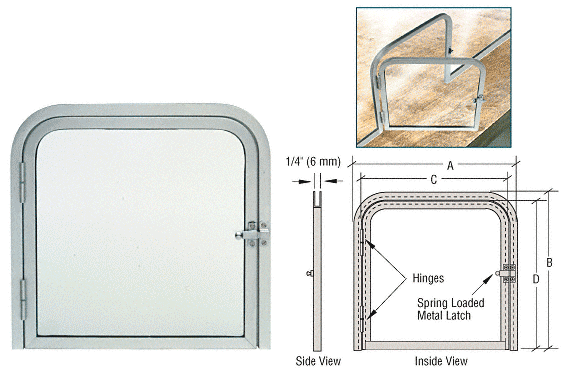

Package Slot with Left Hinged Clear View Door
1213LHA
!



          • Package Slot with Left Hinged Clear View Door with 6 mm Glass.

          • Clear View Package Door provides an unobstructed view of items to be passed before door is opened. It is glazed with 1/4 inch (6 millimeter) clear glass, and includes 1/4 inch (6 millimeter) vinyl for glazing the frame in the cut-out. Spring loaded metal latch for security and years of reliable service. Available in Satin Anodized or Duranodic Bronze finishes. Hinged left or right from clerk side.

Package Slot with right Hinged Clear View Door
1213RHA
!



          • Package Slot with right Hinged Clear View Door with 6 mm Glass.

          • Clear View Package Door provides an unobstructed view of items to be passed before door is opened. It is glazed with 1/4 inch (6 millimeter) clear glass, and includes 1/4 inch (6 millimeter) vinyl for glazing the frame in the cut-out. Spring loaded metal latch for security and years of reliable service. Available in Satin Anodized or Duranodic Bronze finishes. Hinged left or right from clerk side.

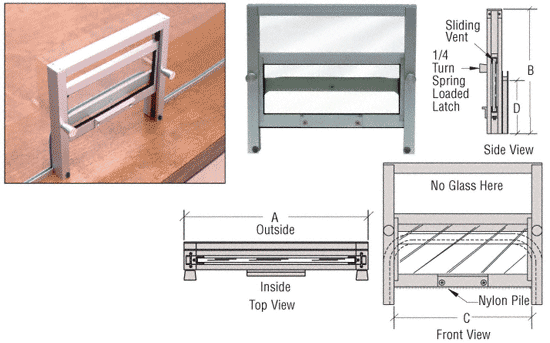

Vertical Sliding Ticket Window
701A
!



          • Vertical Sliding Ticket Window with 6 mm Glass.

          • The Vertical Sliding Ticket Window can be installed above the counter top without altering its surface. It is constructed of heavy gauge extruded aluminum in satin anodized or duranodic bronze finishes. The sliding lower panel is glazed with 1/4 inch (6 millimeter) clear glass, and has spring tensioned guides to hold it in the raised position. Two spring loaded knob latches will secure the window to closed position. Pile weatherstripping along the lower frame prevents drafts. Frame protrudes only one inch (25 millimeter) on clerk's side, and glass channel installs easily in 1/4 inch (6 millimeter) thick glass. Two standard sizes are available, with custom sizes made to your requirements.

Vertical Sliding Ticket Window
702A
!



          • Vertical Sliding Ticket Window with 6 mm Glass.

          • The Vertical Sliding Ticket Window can be installed above the counter top without altering its surface. It is constructed of heavy gauge extruded aluminum in satin anodized or duranodic bronze finishes. The sliding lower panel is glazed with 1/4 inch (6 millimeter) clear glass, and has spring tensioned guides to hold it in the raised position. Two spring loaded knob latches will secure the window to closed position. Pile weatherstripping along the lower frame prevents drafts. Frame protrudes only one inch (25 millimeter) on clerk's side, and glass channel installs easily in 1/4 inch (6 millimeter) thick glass. Two standard sizes are available, with custom sizes made to your requirements.

No-Draft Mail Slot
NDMS13A
!



          • No-Draft Mail Slot for all Thicknesses.

          • The Mail Slot is designed to keep out the weather as well as dust and dirt. The No-Draft Mail Slot has two door flaps, both spring loaded and weather-stripped, as well as internal brush strips for greater insulation and privacy. Both the external and internal flaps open to 135 Degrees for easy access as well as both have durable nylon torsion rods instead of springs to keep both flaps tightly shut. Made from high impact ABS plastic and anodized aluminum, the CRL No-Draft Mail Slot will not rust or tarnish over time. Easy to install by simply running a bead of silicone on both the interior and exterior sides and attaching to the glass around the 10-1/4 inch (260 millimeter) wide by 1-7/8 inch (47.6 millimeter) high cut-out. Glass Fabrication is required. Instructions are included.

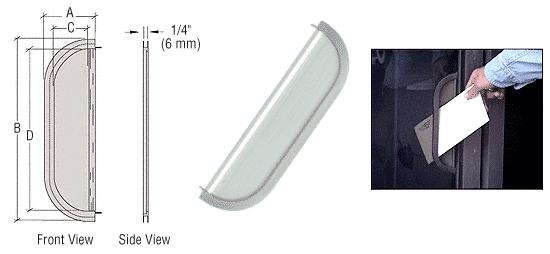

Mail Slot with Spring Tension Closing
MS125A
!



          • Spring Tension Closing Eliminates Dust and Water Penetration.

          • Large Mail Slots are designed to be installed in 1/4 inch (6 millimeter) glazed metal entrance doors on commercial and industrial buildings. Their full radius corners make for easy glass cut-out and installation of slot. Concealed spring mechanism on flap keeps it closed securely, preventing infiltration of dirt, dust and water.

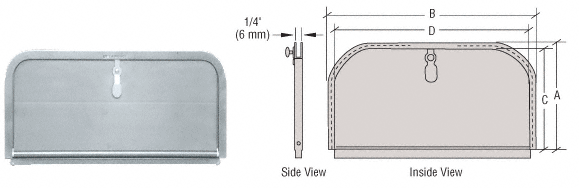

Opening Package Drop Slot
522A
!



          • Opening Package Drop Slot for 6 mm Glass.

          • The Package Drop is designed to be installed in a grooved counter or horizontal mullion with a glazing pocket for 1/4 inch (6 millimeter) glass. The unit can also be installed vertically, but must be glazed in the left side pocket as viewed from latch side. This will allow the latch to function properly.

Half-Round Ticket Ticket Window
702A
!



          • Half-Round Ticket Window for 6 mm Glass.

          • The Half-Round Ticket Window has a swing-away cover plate that is equipped with a tamper-resistant snap lock and retaining pin for security. The cover plate is also removable when desired. Constructed of extruded aluminum, they are available in satin anodized or duranodic bronze finishes in three sizes. All are made to fit in 1/4 inch (6 millimeter) thick glass, though spacer kits for thicker glass can be ordered to suit your requirements. A simple-to-do semi-circular cutout is required for installation, which is easily and swiftly completed using the fasteners enclosed.
